Standard Compliance
? IEEE 802.3 10BASE-T Ethernet
? IEEE 802.3u 100BASE-TX Ethernet
? IEEE 802.3ab 1000BASE-T Ethernet
? IEEE 802.3az EEE support
? IEEE 802.3x flow control
? IEEE 802.3z 1000BASE-X
? IEEE 802.1p CoS
? IEEE 802.3af PoE
? IEEE 802.3at PoE Plus

Feature
For more product information, visit us on the web at www.zyxel.com
Copyright © 2022 Zyxel and/or its affiliates. All rights reserved.
All specifications are subject to change without notice.
Accessories


Transceivers (Optional)
Model Speed Connector Wavelength Max. Distance DDMI
SFP-1000T Gigabit RJ-45 - 0.1 km (109 yd) -
SFP-SX-D Gigabit Duplex LC 850 nm 0.55 km (601 yd) Yes
SFP-SX-E Gigabit Duplex LC 850 nm 0.55 km (601 yd) Yes
SFP-LX-10-D Gigabit Duplex LC 1310 nm 10 km (10936 yd) Yes
SFP-LX-10-E Gigabit Duplex LC 1310 nm 10 km (10936 yd) Yes
SFP-LHX1310-40-D Gigabit Duplex LC 1310 nm 40 km (43744 yd) Yes
SFP-ZX-80-D Gigabit Duplex LC 1550 nm 80 km (87488 yd) Yes
SFP-BX1310-10-D Gigabit Single LC 1310 nm (Tx); 1490 nm (Rx) 10 km (10936 yd) Yes
SFP-BX1310-E Gigabit Single LC 1310 nm (Tx); 1550 nm (Rx) 20 km (21872 yd) Yes
SFP-BX1490-10-D Gigabit Single LC 1490 nm (Tx); 1310 nm (Rx) 10 km (10936 yd) Yes
SFP-BX1550-E Gigabit Single LC 1550 nm (TX); 1310 nm (RX) 20 km (21872 yd) Yes
Ordering Information

Model Part Number Hardware Revision
GS1100-10HP GS1100-10HP-EU0102F*, GS1100-10HP-US0102F* Revision B1
GS1100-10HP-EU0101F, GS1100-10HP-US0101F
GS1100-16 GS1100-16-EU0103F, GS1100-16-US0103F Revision B1

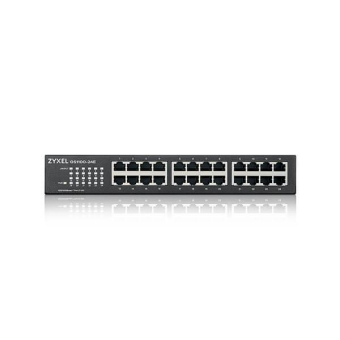

GS1100-24E GS1100-24E-EU0103F, GS1100-24E-US0103F Revision B1
GS1100-24 GS1100-24-EU0103F, GS1100-24-US0103F Revision B1
* Represents the latest hardware revision.
Certifications Safety
? Safety:
? LVD
? BSMI
? EMC (GS1100-10HP: Class B,
GS1100-16/24/24E: Class A)
? CE
? FCC
? RCM
? ICES-003
? BSMI
? RoHS
? REACH
Warranty
? Limited life-time warranty*
* Warranty terms, service availability, and service
response times may vary from country or
